Here is an example of seafloor data and its cleaning using the python tiskit code
tiskit
tiskit is documented at tiskit.readthedocs.io, including how to install, examples and a complete description of each component class.
Installing
Installation instructions are found in the documentation. Unfortunately,
if you install using pip install tiskit, tiskit will be named tiskit-py and you will need to modify line 10 of
run_data_cleaner.py from
from tiskit import CleanRotator, SpectralDensity, DataCleaner
to
from tiskit-py import CleanRotator, SpectralDensity, DataCleaner
If anything does not work for you, please tell Wayne or, better yet, leave an issue at the development website.
Files to download
The script requires tiskit 0.3
Run the script using python3 run_data_cleaner.py When you run it for the first time, CleanRotator will download an earthquake
catalog to your directory.
- run_data_cleaner.py
- Data File: contains one day of data from a seafloor broadband OBS
- Metadata File: contains an inventory of the station and the channel responses.
Images of results

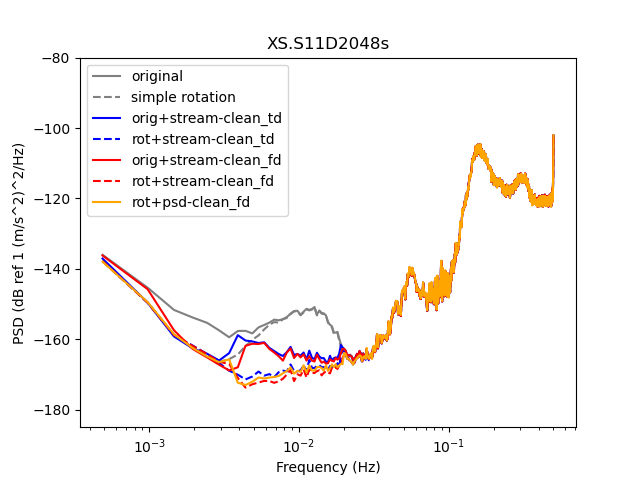

run_data_cleaner.py should plot the orginal power spectral densities for the four channels, then the following image, which compares the PSDs obtained from:
- The original data
- The original data plus simple rotation (CleanRotator class)
- The original data, cleaned using the DataCleaner class and a time-domain stream-cleaning method
- The rotated data, cleaned using the DataCleaner class and a time-domain stream-cleaning method
- The original data, cleaned using the DataCleaner class and a frequency-domain stream-cleaning method
- The rotated data, cleaned using the DataCleaner class and a frequency-domain stream-cleaning method
- The rotated data, with the PSD calculated taking into account the DataCleaner
